KG

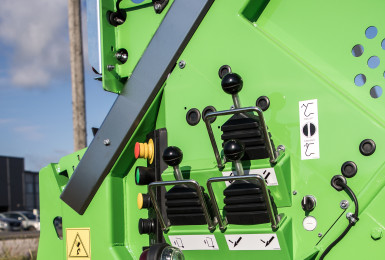

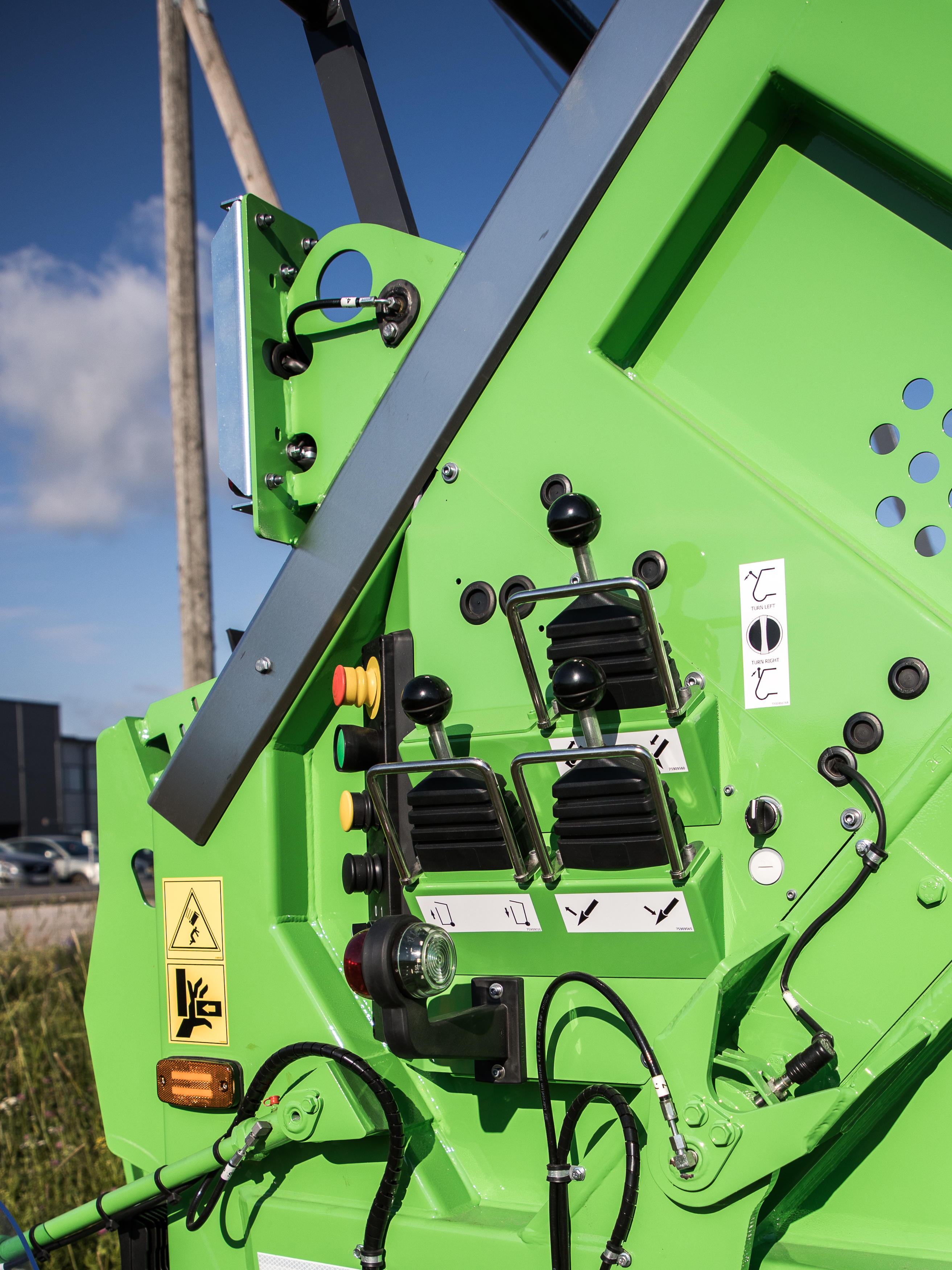

The KG model is designed for chassis with a total weight of 18-26t, offering exceptional flexibility to suit various chassis types. It features a lever-controlled bin lift and winch, along with push-button operation for the carriage and packer plates. For added versatility, compaction can also be controlled via levers if needed. With its fast operation, minimal downtime, and a stable tailgate design, the KG requires reduced servicing. Additionally, the hydraulic system is both pressure and flow compensated, ensuring efficient and reliable performance.

There are different model variations available

KGBH

KGBH - a model with a closed and efficiently ventilated tailgate. It is a natural choice when it comes to environmental considerations and dust-free emptying.

KGSH

A spacious container with a lighter and lower tailgate for dust-free emptying.

I'm Interested

Technical Specifications

  • 1. Payload | 4.5 - 12.5t
  • 2. Chassis Weight | 18 - 26.0 tonne
  • 3. System Pressure | 260 bar
  • 4. Compression Force | 300 kN
  • 5. Hopper Volume | 1.7 - 2.1 m³
  • 6. Length | 5.0 - 8.0 m
  • 7. Weight (inc barlift) | 5.2 - 7.9 tonne
  • 8. Body Volume | 10.0 - 22.7 m³
